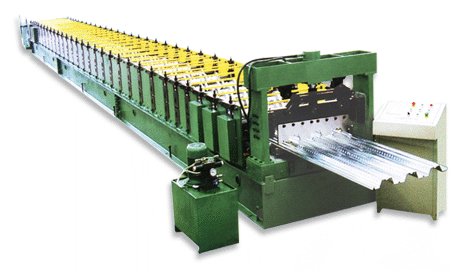

  Steel Deck Roll Forming MacHine

  Parameter:

No.
Model
Width (mm)
Thickness
Cover width (mm)
Size[L*W*H]
Power[kw]
1
TF76-344-688
1000
0.8-1.0
688
17700-2900-1700
15
2
TF75-200-600
1000
0.8-1.2
600
15500*1470*980
15
3
TF70-200-600
1000
0.8-1.2
600
15500*1470*980
15


Technical Parameters:
Material Spec: Galvanized steel sheet
Thickness of Coil Sheet: 0.8 --1.2 mm
Main Motor Power: 18.5kw
Forming Speed: 10--12m/min
Hydraulic Station Power: 3kw
Quantity of Stands: About 24 groups
Hydraulic Pressure: 10~12Mpa
Controlling System: PLC
Index Error of Length: 10m±2mm
Total Weight: About 1800kg
Voltage: 380V 3 phase 60Hz or at buyer’s requirement

Standard Equipment of Machine:
Passive uncoiler 1pc Guiding equipment 1set
Rolling forming equipment 1set Main body 1set
Post-cut equipment 1set Hydraulic station 1pc
PLC controlling desk 1pc Supporter table 2pc
Security cover (optional) 1set
