Professional roll forming machinery manufacturer
Anyang General International Co.,Ltd

AGICO is a main manufacturer of Sandwich Panel Line in China.Our Sandwich Panel Machine
can produce Eps Sandwich Panel,Pu Sandwich Panel and Rock Wool Sandwich Panel.
Roll Forming For Roof And Wall
Glazed Tile Roll Forming Line
Steel Deck Roll Forming Machine
C Z Purlin Roll Forming Machine
Sandwich Panel Roll Forming Line
Tile Sheet
Floor Decking Sheet
C&Z Purlin
H Beam
Eps Sandwich Panel
Pu Sandwich Panel
Rock Wool Sandwich Panel

  Pu Sandwich Panel


Polyurethane Sandwich Panel also called PU Sandwich Panel,the up & down surface of this panel is Galvanized & Pre-painted steel sheets, core material is 5 components Polyurethane glue, it is formed by heating, foaming & laminating. Polyurethane is the best material for temperature keeping and sound insulation. It is widely used as the wall or roof for cold storage, industrial workshop, public building etc.

 Standard Wall Sandwich Panel
 Flat Wall Sandwich Panel
 Micro-Wave Wall Sandwich Panel
.
 Standard Roof Sandwich Panel
 Hidden Joint Roof Sandwich Panel

The characteristics of polyurethane sandwich panel:
1.Light self-weight:
only 10-14kg/m2,, the installation is convenient and flexible, without large-scale lifting devices, the short building-time and low cost.
2.The load-bearing capacity:
high intensity, large rigidity, is suitable either for the weight-bearing structure or for the supporting and protective structure.
3. The temp-keeping & heat insulation:
Good thermal insulation, the average coefficient of thermal conductivity is 0.018-0.022w/mk.
Suitable for keeping the occasion much warm, and reducing the cost.
4. Cold and heat-resisting performance:
perfect temperature-resistance deformation from -110oc to 120 oc
5. Other characteristics :
dimensional stability; non-water absorbent; aesthetically pleasing appearance; durability and
environmentally friendly materials.

Main Technical Parameters

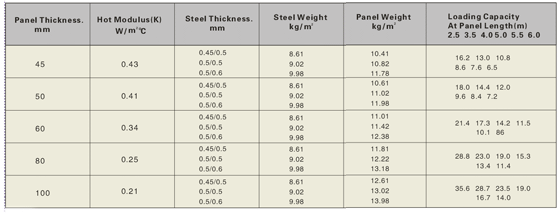

      For PU Wall Sandwich Panel

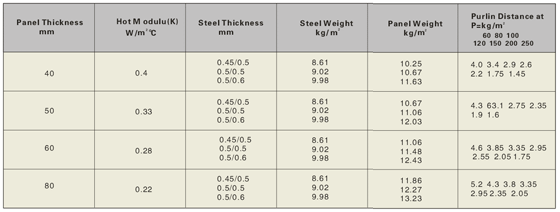

      For PU Roof Sandwich Panel


Anyang General International Co.,Ltd Tel:86-372-5965148 Fax:86-372-5951936 Email: info@chinarollforming.com
