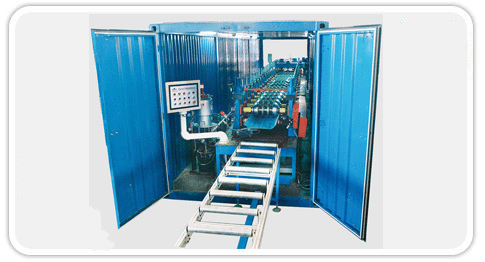

Roll
Forming For Roof And Wall |
| |
|
|
| |
|
|
|
| Parameter: |
No. |
Model
|
Width
(mm) |
Thickness
|
Cover
width (mm) |
Size[L*W*H]
|
Power[kw]
|
Plate
model |
1
|
TF25-210-840
|
1000 |
0.4-0.6
|
840 |
9130-1470-1370
|
5.5
|
|
2
|
TF15-225-900
|
1000 |
0.4-0.6
|
900 |
5400*1400*1250
|
3
|
|
3
|
TF25-205-820
|
1000 |
0.4-0.6
|
820 |
10030*1400*1350
|
4
|
|
4
|
TF25-205-820
|
1000 |
0.3-0.8
|
820 |
9470*1460*1045
|
4
|
|
5
|
TF28-205-820A
|
1000 |
0.3-0.8
|
820 |
8892*1291*1045
|
4
|
|
6
|
TF35-190-760
|
1000 |
0.3-0.8
|
760 |
10430*1310*1100
|
4
|
|
7
|
TF35-125-750
|
1000 |
0.3-0.8
|
750 |
10730*1310*1100
|
4
|
|
8
|
TFY76-475
|
600 |
0.4-0.8
|
475 |
10264*974*1170
|
5.5
|
|
9
|
TFY51-380-760
|
1000 |
0.35-0.6
|
760 |
13400*1500*1630
|
11
|
|
10
|
TFY50-373
|
600 |
0.4-0.6
|
373 |
13370*1024*1330
|
4
|
|
11
|
TF35-370
|
600 |
0.45-0.6
|
370 |
7494*1544*1570
|
4
|
|
12
|
TFY48-410-820
|
1000 |
0.4-0.6
|
820 |
12200*1380*1400
|
7.5
|
|
13
|
TF90-333-666
|
1000 |
0.6-1.2
|
666 |
16500*2900*1010
|
15
|
|
| 14 |
TF15-140-840
|
1000 |
0.3-0.8
|
840 |
10300*1460*850
|
4
|
|
15
|
TF10-150-900
|
1000 |
0.3-0.8
|
900 |
6640*1300*1300
|
4
|
|
16 |
TF66-394-788 |
1000 |
0.4-0.6 |
788 |
10687*1400*962 |
7.5KW |
|
17 |
TF15-248-992 |
1200 |
0.3-0.6 |
992 |
12570*1787*1102 |
7.5KW |
|
|
| |
Machine
Components:
(1) Manual Un-coiler 1 set
(2) Roll-Forming M/C 1 set
(3) Hydraulic Cutting 1 set
(4) PLC Control System 1 set
(5) Product Rack (un-powered) 1 set
Technical Specification:
(1) Manual Un-coiler:
Un-powered; Load capacity = Max.5Tons;
(2) Roll-Forming M/C:
About 18steps to form; Material of Roller: 45# steel with chromizing
on surface
Voltage:380V/50Hz; Main line speed:8-12 m/min;
(3) Hydraulic Cutting:
Stop to cut, Post cut,
Cutting tool material: Cr12, Heat treatment
(4) PLC Control System:
Using Mitsubishi PLC Control the quantity, length automatically,
LCD screen,
(5) Product Rack (UN powered)
Hydraulic Un-coiler:
Hydraulic system to expand coil inner hole;
Frequency Inverter to regulate turning speed,
Automatic stop device;Load capacity = Max.5Tons;
Material:
(1) Coil Width: 1250mm
(2) Suitable Coil Thickness: 0.3-0.5mm
(3) Suitable Raw Materials: Pre-painted coil (Q235A); Yield
bearing stress: 235 Mpa |
| |
|
|
